Using External Interrupt

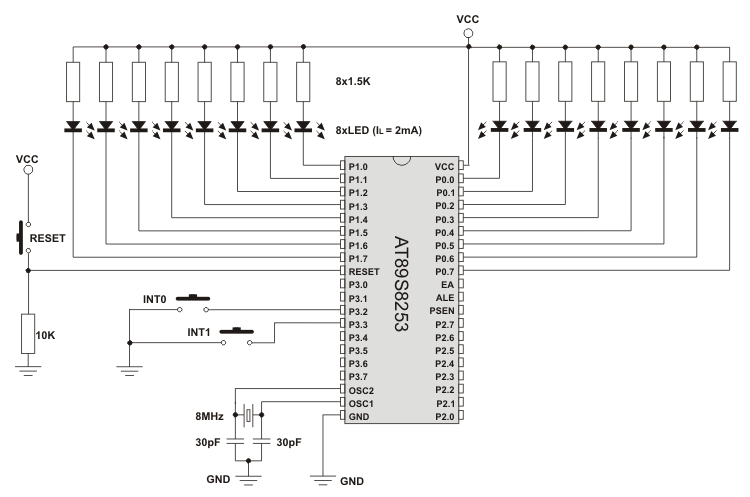

Here is another example of interrupt execution. An external iterrupt is generated when a logic zero (0) is present on pin P3.2 or P3.3. Depending on which input is active, one of two routines will be executed:A logic zero (0) on the P3.2 pin initiates execution of interrupt routine Isr_Int0, thus incrementing number in register R0 and copying it to port P0. Logic zero on the P3.3 pin initiates execution of subroutine Isr_Int1, number in register R1 is incremented by 1 and then copied to port P1.
In short, each press on push buttons INT0 and INT1 will be counted and immediately shown in binary format on appropriate port (LED which emitts light represents a logic zero (0)).
;************************************************************************ ;* PROGRAM NAME : Int.ASM ;* DESCRIPTION : Program counts interrupts INT0 generated by appearance of high-to-low ;* transition signal on pin P3.2 Result appears on port P0. Interrupts INT1 are also ;* counted up at the same time. They are generated byappearing high-to-low transition ;* signal on pin P3. The result appears on port P1. ;************************************************************************ ;BASIC DIRECTIVES $MOD53 $TITLE(INT.ASM) $PAGEWIDTH(132) $DEBUG $OBJECT $NOPAGING ;RESET VECTORS CSEG AT 0 JMP XRESET ; Reset vector ORG 003H ; Interrupt routine address for INT0 JMP Isr_Int0 ORG 013H ; Interrupt routine address for INT1 JMP Isr_Int1 ORG 100H XRESET: MOV TCON,#00000101B ; Interrupt INT0 is generated by appearing ; high-to-low transition signal on pin P3.2 ; Interrupt INT0 is generated by appearing ; high-to-low transition signal on pin P3.3 MOV IE,#10000101B ; Interrupt enabled MOV R0,#00H ; Counter starting value MOV R1,#00H MOV P0,#00H ; Reset port P0 MOV P1,#00H ; Reset port P1 LOOP: SJMP LOOP ; Remain here Isr_Int0: INC R0 ; Increment value of interrupt INT0 counter MOV P0,R0 RETI Isr_Int1: INC R1 ; Increment value of interrupt INT1 counter MOV P1,R1 RETI END ; End of program
